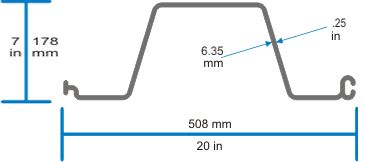

TW30 2D Drawing






TW30
Standard color
Light gray
Custom colors
Clay, Slate, Others
UV Protection
TW30 is made from highly weatherable, UV-stabilized rigid PVC
60 Year Warranty
TW30 is covered by a transferable Limited 60 year Warranty that protects against manufacturing defects
    Standard Metric
Constituent Material
PVC, Exterior Grade Rigid Only
PVC, Exterior Grade Rigid Only
Section Width (W)
20 inches
508 mm
Section Depth (D)
7 inches
178 mm
Section Thickness (T)
.250 inches
6.35 mm
Weight
5.4 lbs/lineal foot
8.05 kg/lineal meter
Moment of Inertia
41.4 in4/ft
5,653 cm4/m
Section Modulus
11.6 in3/ft
623 cm3/m
Ultimate Moment
6,283 ft-lb/ft
2,890 kg-m/m
Allowable Moment
3,141 ft-lbs/ft
1,445 kg-m/m
Tensile Strength ASTM-D638
6,500 lbs/in2
44.8 Mpa
Flexural Strength ASTM-D790
10,200 Psi
70.3 Mpa
Modulus of Elasticity ASTM-D790
380,000 Psi
2,620 Mpa
Notched Izod Impact ASTM-D256
13.75 lbs/in
2.46 kg/cm
Heat Deflection Temp. ASTM-D648
158 degrees F
70 degrees C
