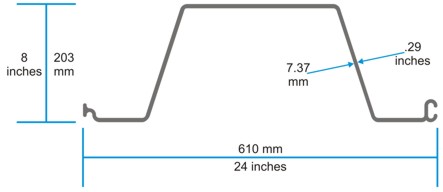

TW55 2D Drawing






TW55
Standard color
Light gray
Custom colors
Clay, Slate, Others
UV Protection
TW55 is made from highly weatherable, UV-stabilized rigid PVC
60 Year Warranty
TW55 is covered by a transferable Limited 60 year Warranty that protects against manufacturing defects
    Standard Metric
Constituent Material
PVC, Exterior Grade Rigid Only
PVC, Exterior Grade Rigid Only
Section Width (W)
24 inches
610 mm
Section Depth (D)
8 inches
203 mm
Section Thickness (T)
.290 inches
7.37 mm
Weight
6.65 lbs/lineal foot
9.88 kg/lineal meter
Moment of Inertia
57.58 in4/ft
7,862 cm4/m
Section Modulus
14.3 in3/ft
788.8 cm3/m
Ultimate Moment
7,865 ft-lb/ft
3,567 kg-m/m
Allowable Moment
3,932 ft-lbs/ft
1,784 kg-m/m
Tensile Strength ASTM-D638
6,500 lbs/in2
44.8 Mpa
Flexural Strength ASTM-D790
10,200 Psi
70.3 Mpa
Modulus of Elasticity ASTM-D790
380,000 Psi
2,620 Mpa
Notched Izod Impact ASTM-D256
13.75 lbs/in
2.46 kg/cm
Heat Deflection Temp. ASTM-D648
158 degrees F
70 degrees C
