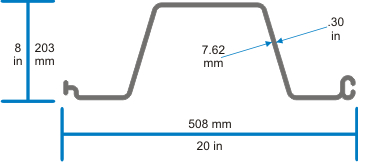

TW50 2D Drawing






TW50
Standard color
Light gray
Custom colors
Clay, Slate, Others
UV Protection
TW50 is made from highly weatherable, UV-stabilized rigid PVC
60 Year Warranty
TW50 is covered by a transferable Limited 60 year Warranty that protects against manufacturing defects
    Standard Metric
Constituent Material
PVC, Exterior Grade Rigid Only
PVC, Exterior Grade Rigid Only
Section Width (W)
20 inches
508 mm
Section Depth (D)
8 inches
203 mm
Section Thickness (T)
.300 inches
7.62 mm
Weight
6.5 lbs/lineal foot
9.41 kg/lineal meter
Moment of Inertia
70.7 in4/ft
9,655 cm4/m
Section Modulus
16.1 in3/ft
866 cm3/m
Ultimate Moment
8,720 ft-lb/ft
4,005 kg-m/m
Allowable Moment
4,360 ft-lbs/ft
2,002 kg-m/m
Tensile Strength ASTM-D638
6,500 lbs/in2
44.8 Mpa
Flexural Strength ASTM-D790
10,200 Psi
70.3 Mpa
Modulus of Elasticity ASTM-D790
380,000 Psi
2,620 Mpa
Notched Izod Impact ASTM-D256
13.75 lbs/in
2.46 kg/cm
Heat Deflection Temp. ASTM-D648
158 degrees F
70 degrees C
